SUPERIOR
COMPACTION
SYSTEMS

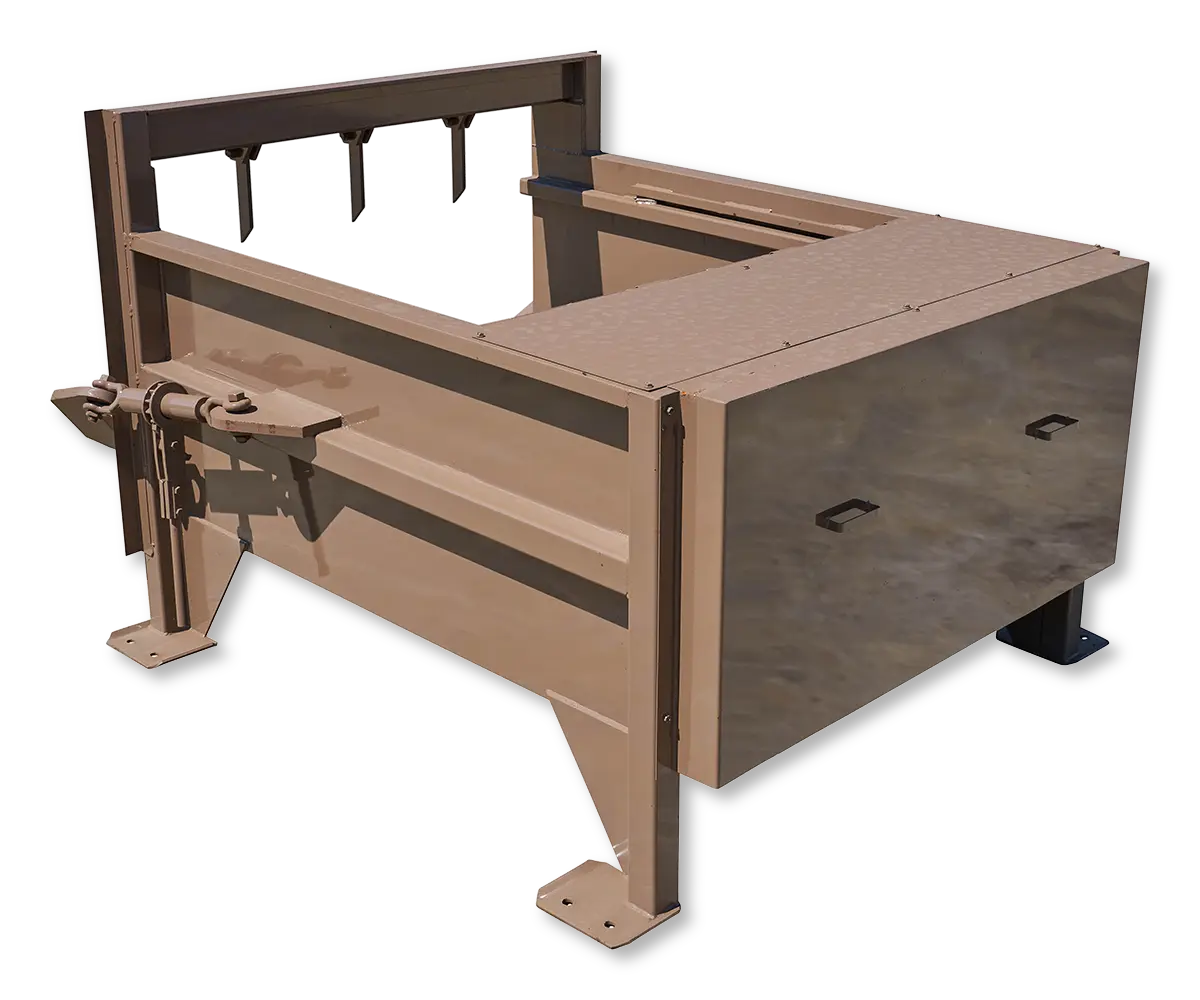

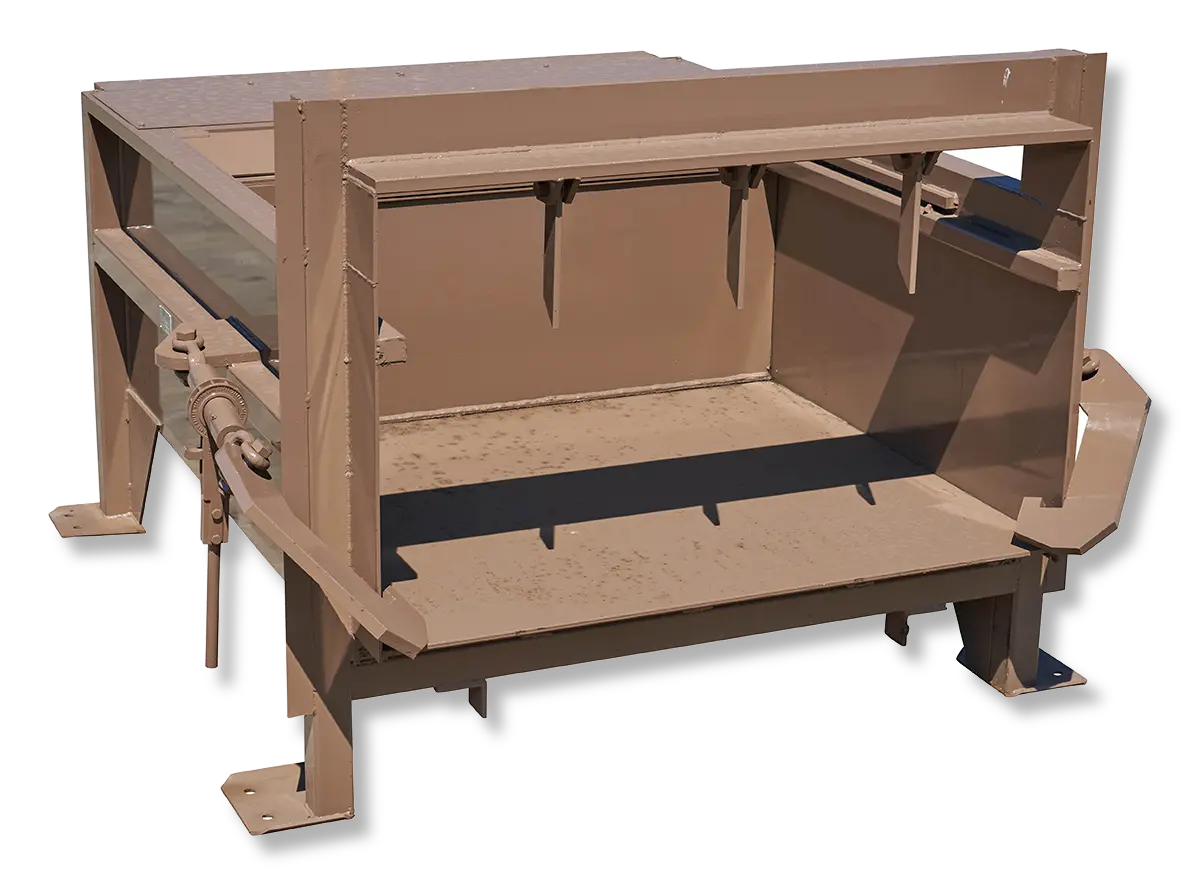

Model M200S

FEATURES

  • Heavy duty construction
  • Automatic multi-cycle operation
  • Low maintenance

OPTIONS

  • CAT3 safety panel
  • Pin off systems
  • Oil heater
  • Remote jog controls
  • Enclosures
  • Odor control equipment

IDEAL FOR

Supermarkets Department Stores
Commercial Industrial
Hospitals Hotels
Malls
Contact us for a FREE QUOTE

SPECIFICATIONS


Items Model 200S
Length A 46"
Width B 79"
Height C 47"
Charging area 2 cu. yd.
Clear top opening D 49.5" x 57"
Frame
Floor
Side		 3/8"
5/16"
Ram
Face - Wx H
Floor
Top
Sides
Guides		 57" x 24"
3/8"
5/16"
5/16"
2" x 2" x 1/4" TB
Penetration 10"
Breaker Bars 6" x 5" x 1" FB
Cylinder
Bore
Stroke		 4" Dual
40"
Motor Rating 10 HP
Cycle Time 55 sec
Electrical Requirements 208/230/460/575
Ram Force 42,500 lb.
System Pressure 2000 psi

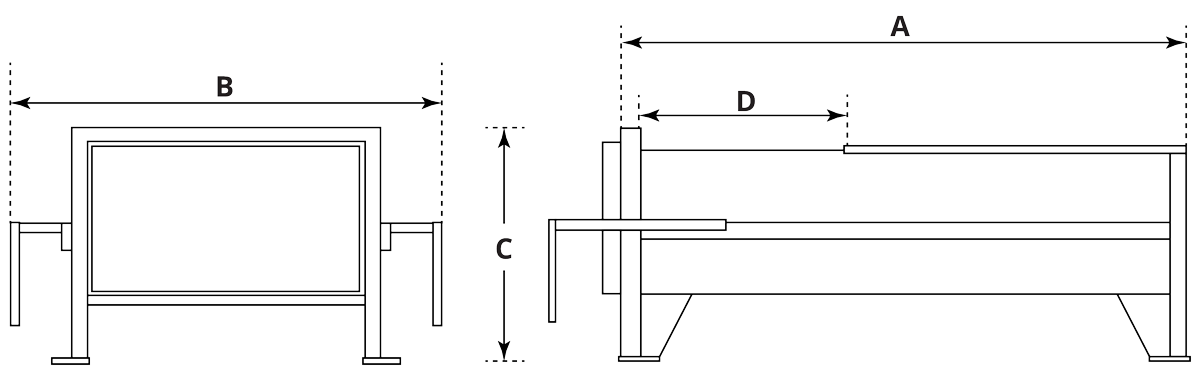

200S drawing
