SUPERIOR
COMPACTION
SYSTEMS
Model M175-33SC
FEATURES
- Large feed opening for bulky items
- Easily customized to special applications
- Full door seal for liquid tight system
- High force and extra ram penetration
- Easy installation
- Quick disconnect fittings
- Self cleaning floor
- Large liquid sump
OPTIONS
- CAT3 safety panel
- Extended warranty
- Odor control systems
- Enclosures
- Oil heater
IDEAL FOR
 | Supermarkets |  | Malls |
 | Restsurant |  | Hospitals |
 | Resorts |  | Food Plants |
SPECIFICATIONS
| Items | Model M175-33SC |
|---|---|
| Charge Box Capacity | 1.75 cu. yd |
| Clear Top Opening | 40” x 60” |
| Cycle Time (s) | 45 sec |
| Force Normal lbs. Maximum lbs. | 39,000 48,000 |
| Ram Penetration (“) | 6” |
| Electric Motor HP | 10 HP |
| Hydraulic Pump | 9GPM |
| Electrical Requirements | 208/575 |
| Pressure Normal PSI Maximum PSI | 2000 2400 |
| Cylinder | 5” cylinder |

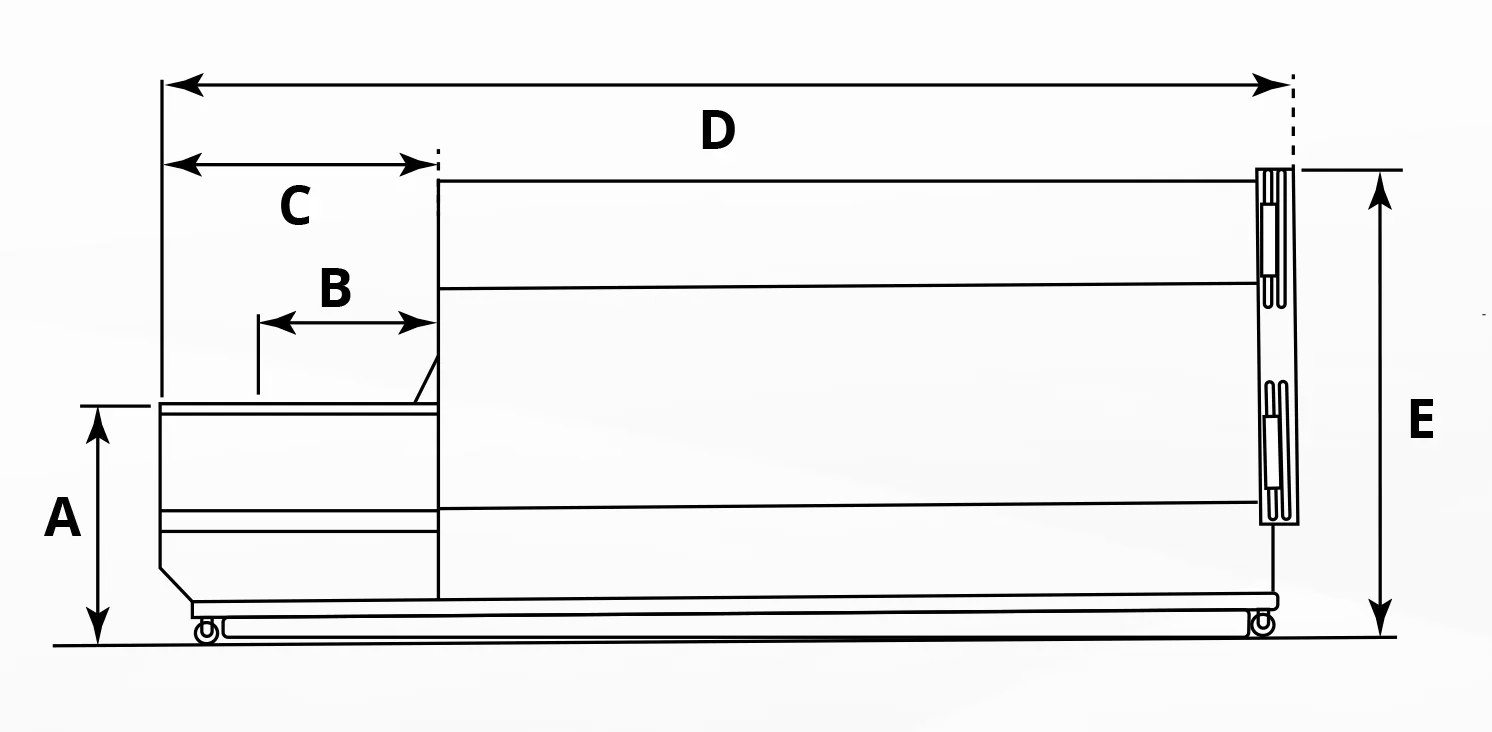

| A | B | C | D | E |
| 43” | 39” | 96” | 281” | 102” |
