SUPERIOR
COMPACTION
SYSTEMS

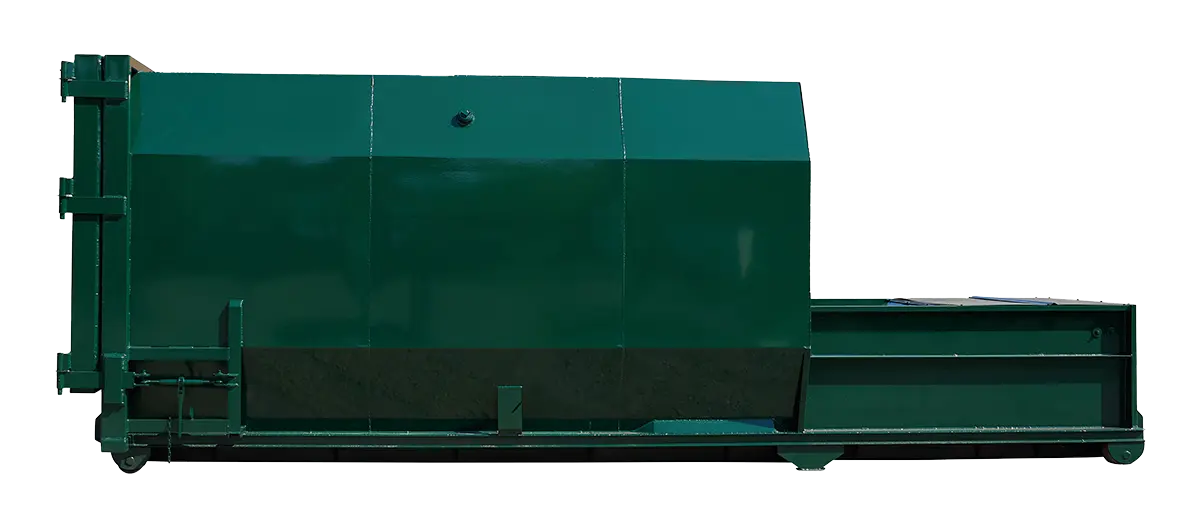

Model M200-35SC
FEATURES
- Large feed opening for bulky items
- Easily customized to special applications
- Full door seal for liquid tight system
- High force and extra ram penetration
- Easy installation
- Quick disconnect fittings
- Self cleaning floor
- Large liquid sump
OPTIONS
- CAT3 safety panel
- Extended warranty
- Odor control systems
- Enclosures
- Oil heater
IDEAL FOR
 | Supermarkets |  | Malls |
 | Restsurant |  | Hospitals |
 | Resorts |  | Food Plants |
SPECIFICATIONS
| Items | Model M200-35SC |
|---|---|
| Charge Box Capacity | 2.0 cu. yd |
| Clear Top Opening | 49.5” x 57” |
| Cycle Time (s) | 45 sec |
| Force Normal lbs. Maximum lbs. | 39,000 48,000 |
| Ram Penetration (“) | 10” |
| Electric Motor HP | 10 HP |
| Hydraulic Pump | 9GPM |
| Electrical Requirements | 208/575 |
| Pressure Normal PSI Maximum PSI | 1800 2200 |
| Cylinder | 4” Dual |

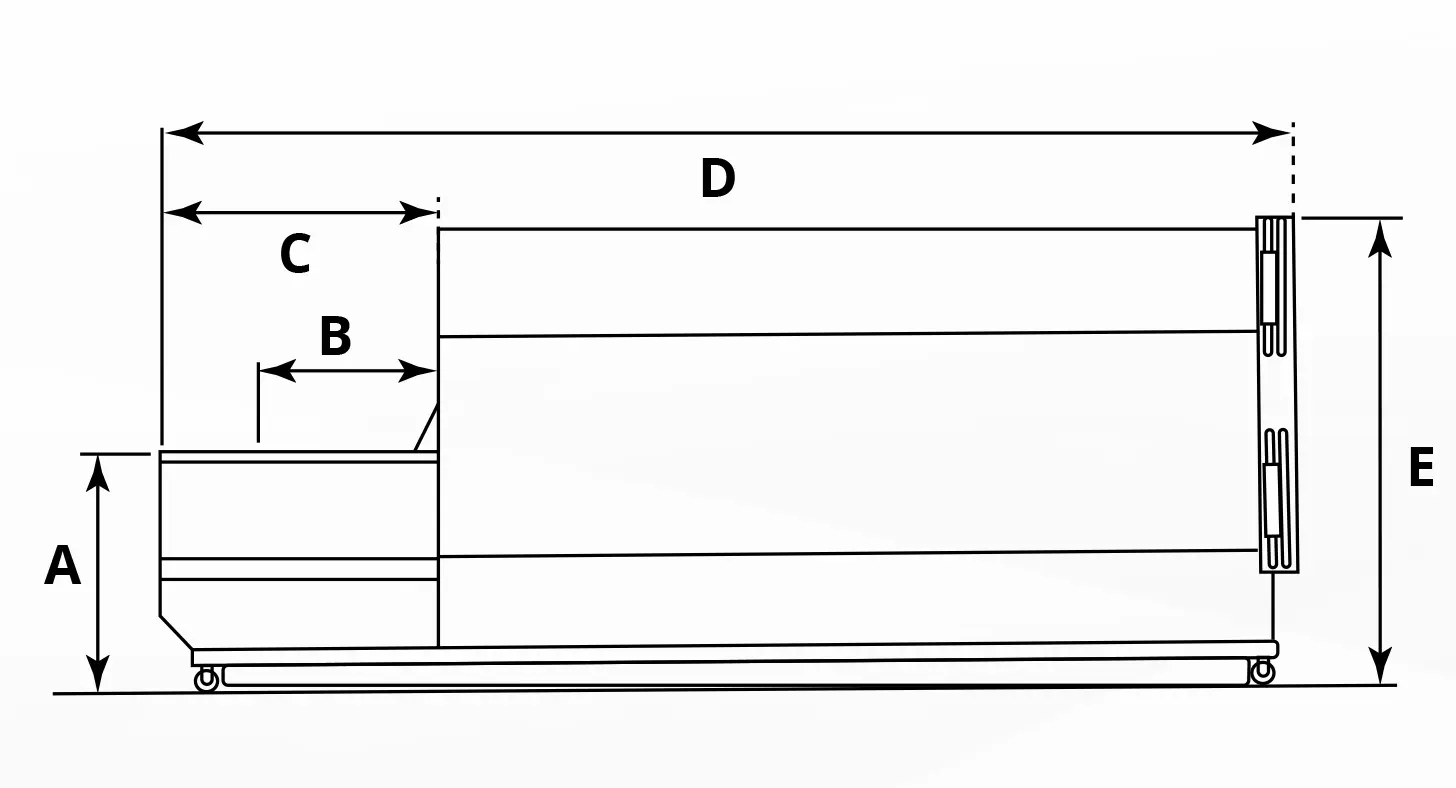

| A | B | C | D | E |
| 43” | 50” | 82” | 281” | 102” |
