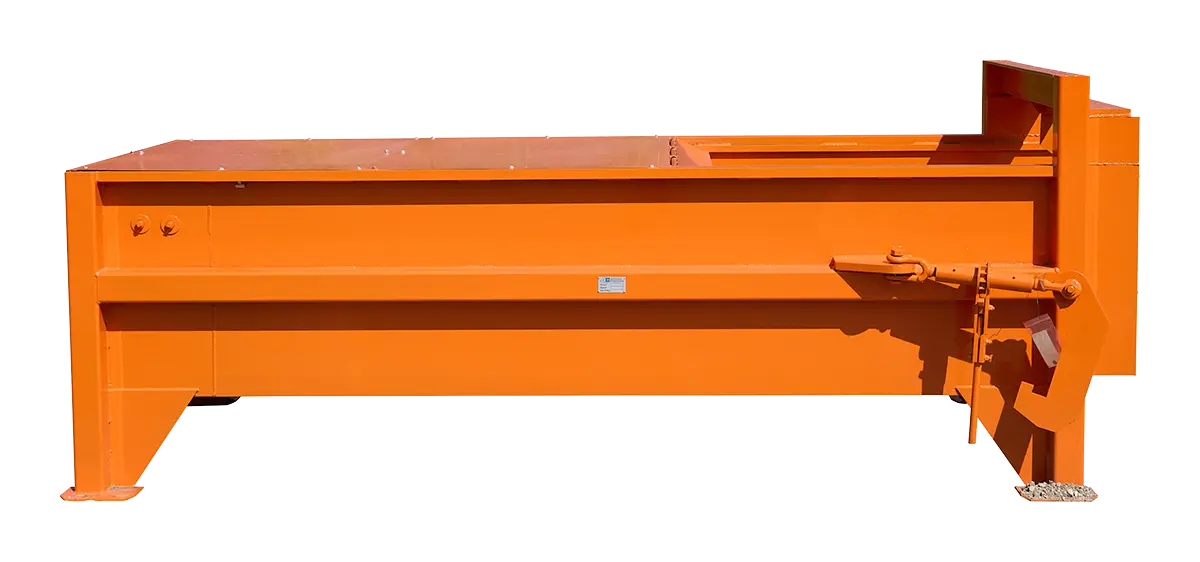

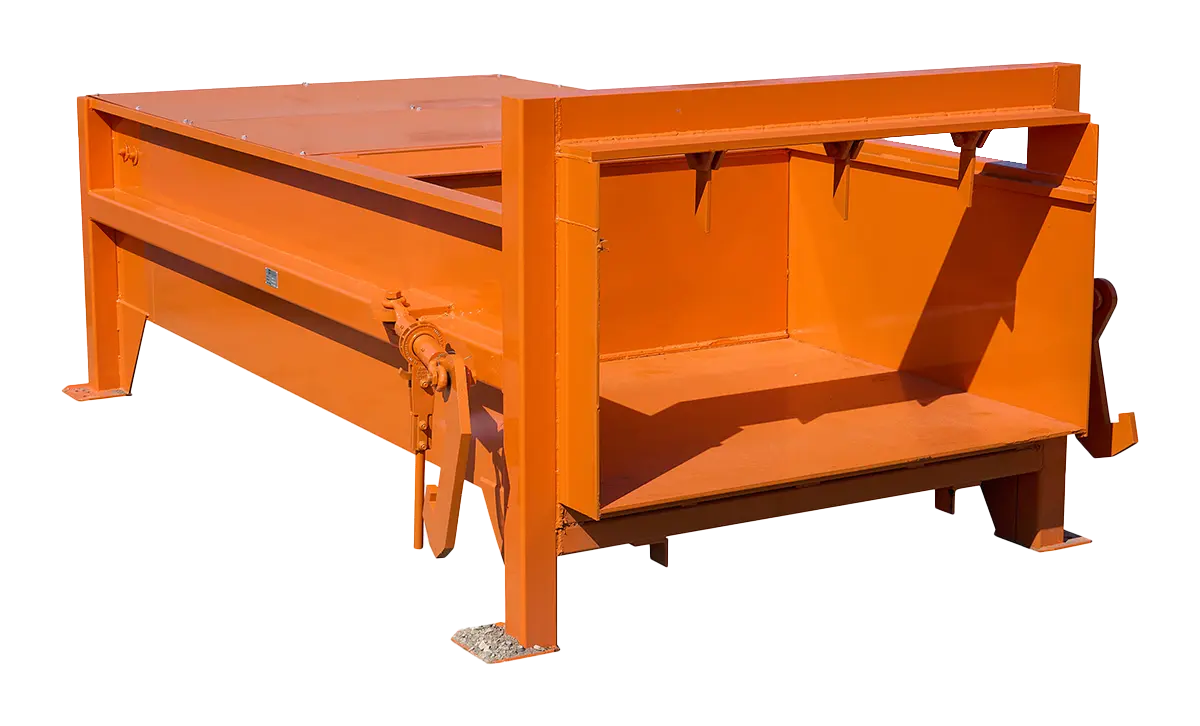

Model M200L

FEATURES

  • Heavy duty construction
  • Automatic multi-cycle operation
  • Low maintenance

OPTIONS

  • CAT3 safety panel
  • Pin off systems
  • Odor control equipment
  • Oil heater
  • Remote jog controls
  • Enclosures

IDEAL FOR

SupermarketsDepartment Stores
CommercialIndustrial
HospitalsHotels
Malls
Contact us for a FREE QUOTE

SPECIFICATIONS


ItemsModel M200L
Length A132"
Width B79"
Height C47"
Charging area2 cu. yd.
Clear top opening D49" x 60"
Frame
Floor
Side		1/2"
3/8"
Ram
Face - Wx H
Floor
Top
Sides
Guides		60" x 24"
1/2"
3/8"
3/8"
1" x 1" FB
Penetration12"
Breaker Bars6" x 5" x 1" FB
Cylinder
Bore
Stroke		6" Dual
60"
Motor Rating10 HP
Cycle Time68 sec
Electrical Requirements208/575
Ram Force56,000 lb.
System Pressure2000 psi

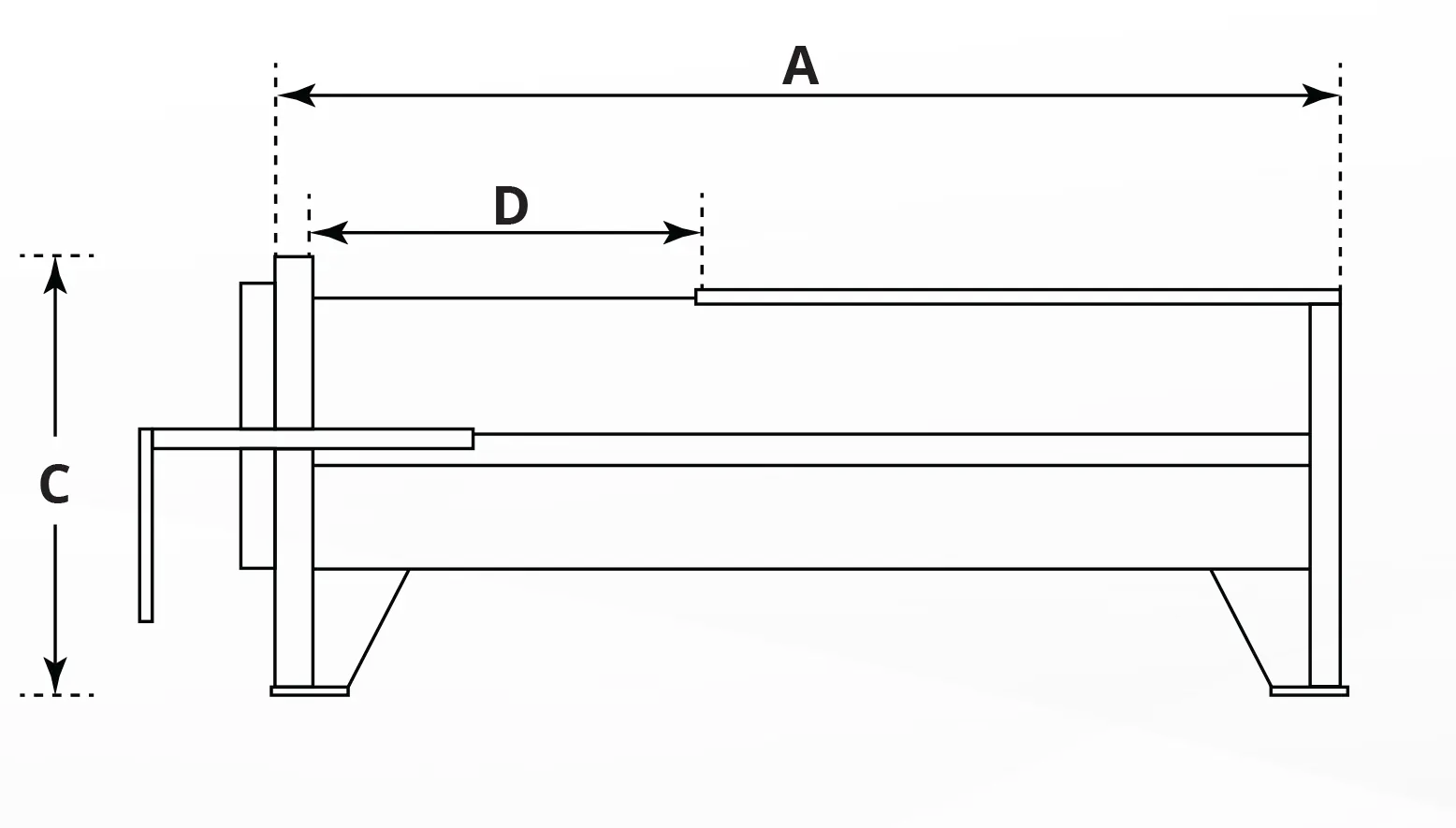

M200L drawing
