RJ-500 & RJ-500HD Compactors
Model: RJ-500 Compactor
Ramjet RJ-500 Trash Compactors are real workhorses! Its proven capability assures top performance in heavy commercial and industrial applications.
The RJ-500 is unique to other compactors in its class, offering a large 60-inch (1524mm) wide by 83-inch (2108mm) long clear top opening and a 33-inch (838.2) deep charge box–a handy feature during peak loading times or when compacting bulky items.
TRASH COMPACTORS ENGINEERED FOR DURABILITY
The RJ-500 is stress engineered for durability. This means the strength is where it belongs– like the half-inch charge box floor reinforced with seven heavy-duty steel channels, the half- inch plate ram face backed with 10-inch (254mm) plus 6-inch (152.4) structural channels, and the extra rugged reinforced sides.
CART DUMPERS, CHUTES, AND HOPPERS
The RJ-500 and RJ-500HD can be fitted with a variety of material handling equipment such as chutes, hoppers, and dumpers. The compactor shown is fitted with a side fed hopper and a ground level dumper. Cart Dumpers can be custom built to your specifications to accomodate existing cart systems.
Model: RJ-500HD Compactor
The RJ-500HD with a long clear top opening and superior strength.
The large 59 1/4-inch (1505mm) wide by 82-inch (2083mm) long clear top opening and superior strength of the RJ-500HD make it just right for large volumes or crates, skids, and other hard-to-compact industrial refuse and trash. Waste is crushed to a fraction of the original bulk.
HEAVY DUTY DESIGN
The RJ-500HD is engineered with extra steel to meet the demands of heavy-duty industrial use. Cylinder supports, a 1-inch (25.4mm) thick breaker bar, a 1/2-inch (12.7mm) ram top, and extra side supports are added for superior endurance. Also standard on the RJ-500HD are 3/8-inch (9.52mm) thick steel charge box liners and a 1/2-inch (12.7mm) thick abrasion-resistant steel plate on the charge box floor. The RJ-500HD comes standard with a 1/2-inch (12.7mm) AR400 tongue and groove floor, as well as a remote power unit. An optional side-mount power unit is available.
CART DUMPERS, CHUTES, AND HOPPERS
The RJ-500 and RJ-500HD can be fitted with a variety of material handling equipment such as chutes, hoppers, and dumpers. The compactor shown is fitted with a side fed hopper and a ground level dumper. Cart Dumpers can be custom built to your specifications to accomodate existing cart systems.
ADDITIONAL FEATURES
The RJ-500 and RJ-500HD feature an advanced, simplified 2-button control system. It is a key-operated, fully automatic and contained in a weatherproof NEmA 4 enclosure. Connected to the power pack with 13-feet (3.96m) of Sealtite®, the controls can be located for operator convenience.
The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. this exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.
The RJ-500 comes standard with a side mount power unit. This provides the convenience and ease-of-maintenance of a remote power pack with the space savings of an integrated power unit.
The RJ-500HD comes standard with a remote power unit that enables the hydraulic power unit and electrical panel box to be mounted separately from the packer.

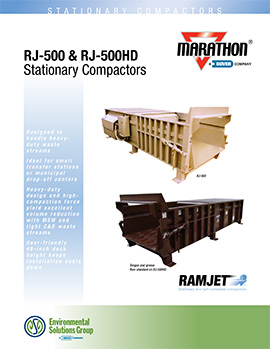

IMAGES AND DOCUMENTATION
